In industrial piping systems, flanges provide the essential connections that join pipes, valves, pumps, and other equipment. Among the various types available, weld neck flanges and slip-on flanges are two of the most common and widely used. However, they serve distinctly different purposes and are not interchangeable. Selecting the wrong type can lead to system failures, leaks, and safety hazards.
This comprehensive guide delves into the critical differences between weld neck and slip-on flanges, providing engineers, project managers, and procurement specialists with the technical knowledge needed to make an informed decision. We will explore their designs, performance characteristics, ideal applications, and cost considerations to ensure you select the right flange for your specific operating conditions.
Table of Contents
At a Glance: Key Differences Between Weld Neck and Slip-On Flanges
The table below provides a quick overview of how these two flange types compare across critical operational parameters.
Table: Weld Neck vs. Slip-On Flange Comparison
| Feature | Weld Neck Flange | Slip-On Flange |
|---|---|---|
| Design & Structure | Long, tapered hub that is butt-welded to the pipe. | Slides over the pipe and is secured with two fillet welds. |
| Strength & Pressure Rating | Excellent strength and durability; suitable for high-pressure and high-temperature applications. | Moderate strength; best for low to medium pressure systems. |
| Fatigue Life | Excellent; can withstand cyclic loading and stress. | Approximately one-third that of a weld neck flange; poor for frequent stress cycles. |
| Leak Resistance | Superior, due to the robust butt-weld and tapered hub that reduces stress. | Moderate; the double welds can introduce potential weak points over time. |
| Cost | Higher initial cost due to more material and complex welding. | Lower initial cost and less expensive to install. |
| Installation Complexity | Requires skilled labor for precise alignment and butt-welding. | Easier and faster to install, requiring less precision. |
| Inspection | Butt weld can be radiographed (X-rayed) for quality assurance. | Fillet welds are difficult to inspect properly with radiography. |
Detailed Analysis: Design, Welding, and Performance
Design and Structural Integrity
The fundamental difference lies in their design and how they manage stress.

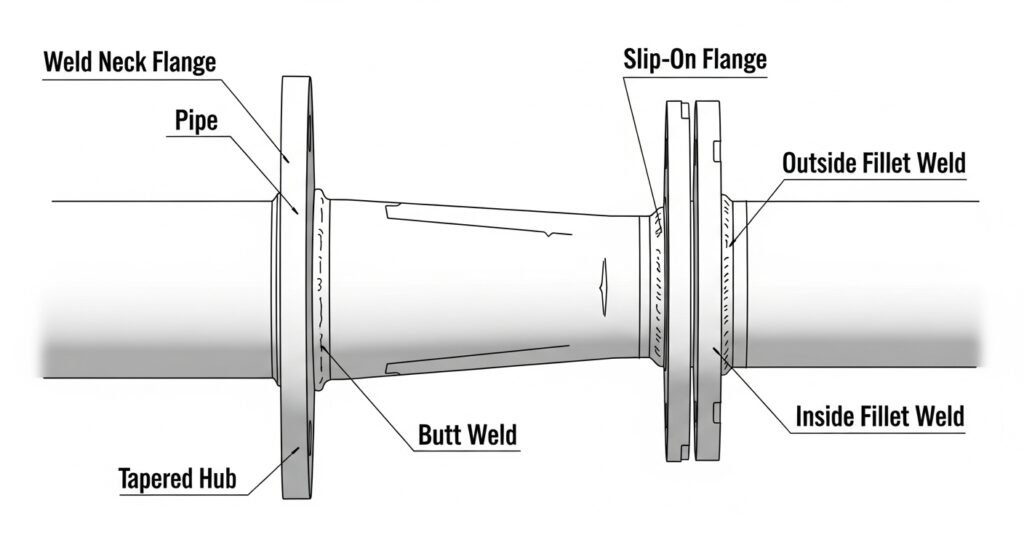

- Weld Neck Flanges: Characterized by a long, tapered hub that provides a gradual transition from the flange thickness to the pipe wall thickness. This design is critical for redistributing stress away from the weld joint, minimizing stress concentration, and providing exceptional reinforcement. The result is a connection that is highly resistant to dishing (bending) and capable of handling mechanical loads and pressure shocks.
- Slip-On Flanges: These have a simpler, more compact design. They lack a tapered hub and instead slide over the end of the pipe, sitting flush against it. The connection is made entirely through fillet welds, which do not provide the same level of structural reinforcement as the tapered hub and butt weld of a weld neck flange. This makes them more susceptible to mechanical stress and fatigue.
Welding Methods and Inspection
The welding process is a major differentiator with significant implications for integrity and cost.
- Butt Welding (Weld Neck): A weld neck flange is attached using a full-penetration butt weld (also known as a groove weld) around the neck of the flange. This creates a single, continuous weld that has a strength equivalent to the pipe itself. A key advantage is that this type of weld can be radiographically inspected (X-rayed) to verify internal quality and ensure there are no hidden defects . For a deeper dive into this process, see our guide on weld neck flange welding.
- Fillet Welding (Slip-On): A slip-on flange requires two fillet welds—one at the hub outside the flange and another on the inside . While easier to perform, these welds are inherently weaker than a butt weld. Furthermore, it is nearly impossible to perform adequate radiographic inspection on the internal fillet weld, making it harder to guarantee its integrity . This is a critical drawback for systems carrying hazardous or expensive media.
Performance in Demanding Environments
- Fatigue and Cyclic Loading: The calculated fatigue life of a slip-on flange is only about one-third that of a weld neck flange. This makes weld necks the mandatory choice for systems experiencing temperature fluctuations, vibration, or other cyclic forces that can cause metal fatigue over time.
- Corrosion Resistance: The gap between the pipe and the slip-on flange’s bore can create a crevice where corrosive substances can accumulate, leading to crevice corrosion. The smooth, integral connection of a weld neck flange eliminates this risk, making it preferable for corrosive services.
Application Guidelines: When to Use Which Flange
Ideal Uses for Weld Neck Flanges
Weld neck flanges are the go-to choice for critical and demanding applications where failure is not an option . These include:
- High-Pressure Systems: Oil and gas transmission pipelines, refinery process lines, and high-pressure steam systems in power plants.
- High-Temperature Services: Applications where temperatures cause significant pipe expansion and contraction.
- Severe Cyclic Loading: Systems subject to vibration or frequent pressure and temperature cycles.
- Hazardous Fluids: Services carrying flammable, toxic, or expensive media where leakage must be prevented at all costs. Industry standards in refineries and chemical plants often mandate their use for these services.
Ideal Uses for Slip-On Flanges
Slip-on flanges are a cost-effective and practical solution for less demanding services . Their typical applications are:
- Low to Medium-Pressure Systems: Water distribution networks, cooling water lines, and plant air systems .
- Non-Critical Utility Services: HVAC systems, firewater lines (where local standards allow), and other non-hazardous fluid transport.
- Budget-Conscious or Space-Limited Projects: Where initial cost and ease of installation are primary drivers, and the operating conditions are benign.
Cost Analysis: Initial Outlay vs. Long-Term Value
The cost comparison between these flanges is more nuanced than just the sticker price.
- Slip-On Flanges have a clear advantage in initial cost. They require less material to manufacture and are cheaper to install due to simpler welding and less stringent alignment requirements .
- Weld Neck Flanges have a higher upfront cost due to more raw material and the need for skilled welders. However, they offer superior long-term value in demanding applications. Their durability, reduced risk of failure, and lower maintenance needs can lead to significant cost savings over the lifecycle of the piping system . The cost of a single unplanned shutdown due to a flange failure can far outweigh the initial savings from using a slip-on flange.
Frequently Asked Questions (FAQs)
1. Can I use a slip-on flange for a high-pressure application to save money?
It is strongly discouraged. Slip-on flanges have a calculated strength under internal pressure of only about two-thirds that of a weld neck flange and a fatigue life of about one-third . Using one in a high-pressure application poses a significant safety risk and is often prohibited by engineering standards and codes.
2. What does the “neck” in a weld neck flange actually do?
The long, tapered hub (neck) is a key engineering feature. It provides crucial reinforcement and allows for a smooth, gradual transfer of stress from the pipe to the flange. This drastically reduces stress concentration at the weld joint, which is the most vulnerable point in the connection.
3. Are slip-on flanges ever allowed in refinery or chemical plant piping?
Yes, but their use is typically restricted. Most owner specifications limit slip-on flanges to utility services like water, air, or other non-hazardous fluids. For process lines carrying hydrocarbons, chemicals, or hazardous materials, weld neck flanges are almost always required.
4. Is the flange face type (RF, RTJ) related to the choice between weld neck and slip-on?
The face type (e.g., Raised Face or Ring-Type Joint) is an independent choice based on the gasket and sealing requirements for the pressure class and service. Both weld neck and slip-on flanges can be manufactured with different face types. However, for very high-pressure classes, a weld neck design is typically used in conjunction with an RTJ face.
5. Why is radiographic testing (X-ray) so important for flange welds?
Radiographic testing is a non-destructive examination method that allows inspectors to see inside a completed weld. It can reveal hidden defects like cracks, lack of fusion, or porosity that are not visible to the naked eye. Since the butt weld on a weld neck flange can be radiographed, it provides a much higher level of quality assurance, which is essential for critical applications.
Conclusion: Making the Right Choice for Your System
The choice between a weld neck and a slip-on flange is not a matter of one being universally better than the other; it is about selecting the right tool for the job.
- Choose a Weld Neck Flange for high-pressure, high-temperature, cyclic, or hazardous service. It is the robust, reliable, and safe choice for any critical application where system integrity is paramount. The higher initial investment is justified by superior performance, longer service life, and reduced risk.
- Choose a Slip-On Flange for low to medium-pressure, non-hazardous utility services where cost and installation speed are the primary concerns. They are a practical and economical solution for a wide range of general industrial applications.
By understanding the technical differences outlined in this guide, you can confidently specify the correct flange type, ensuring the safety, efficiency, and longevity of your piping system.
